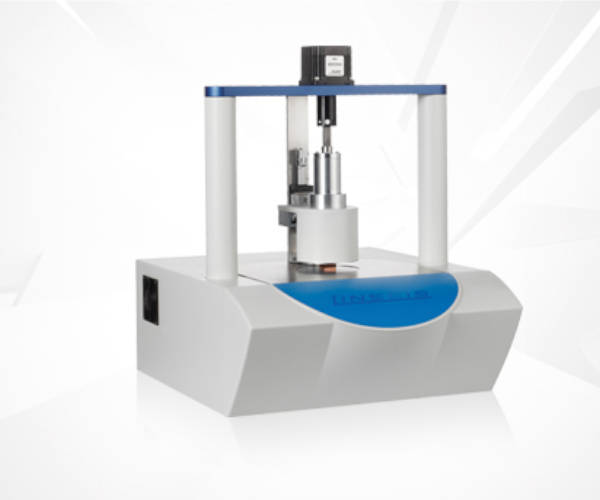

Thermal Interface Material (TIM) Tester


The LINSEIS Thermal Interface Material Tester (TIM-Tester) is the ideal solution to optimize the thermal management of complex systems such as waste heat management and thermal runaway protection in batteries and electronic packaging. Ranging from liquid compounds and pastes to hard solid materials, it can measure the thermal impedance of sample materials and identifies an apparent thermal conductivity. This approach is also consistent with the ASTM D5470 standard.

REQUEST A QUOTE

Sample size: from ø 20 mm to ø 40 mm
from 20 x 20 mm to 40 x 40 mm
Thickness: 0.01 mm up to 15 mm
Other sizes on request
Sample types: solids, powders, pastes, foils, liquids, adhesives
Thickness measurement accuracy: +/- 0.10 % at 50% stroke
+/- 0.25 % at 100% stroke
Resistance range: 0.01 K/W – 8 K/W
Temperature range: RT up to 150°C
-20°C up to 150°C (intracooler)
RT up to 300°C (on request)
Temperature accuracy: 0.1°C
Thermal conductivity range: 0.1 up to 50 W/m∙K (extended range on request)
Contact pressure range: 0 up to 8 MPa (depending on sample size)
Contact pressure accuracy: +/- 1%
Dimensions: 675 mm H x 550mm W x 680 mm D
Cooling system: external chiller (in combination with a additional heater)
Heating system: Resistance heater
