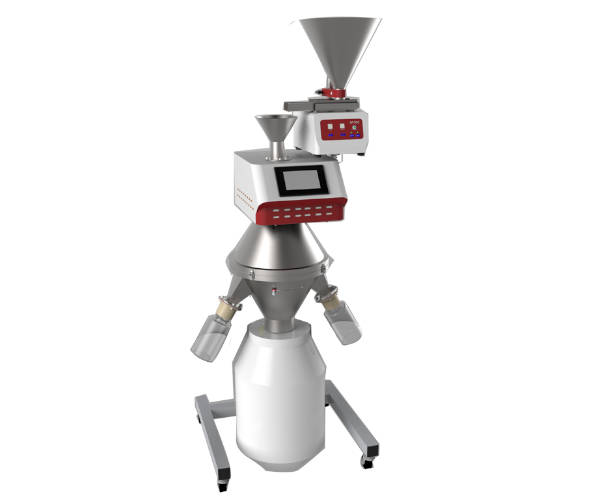

Ants Scientific AF400 Rotating Tube Divider
Adjustable Rotating Sample Divider for Representative Sample Reduction
The Ants Scientific AF400 Rotating Tube Divider is an adjustable sample reduction and portioning system designed for bulk loose materials with feed sizes up to 10 mm. It provides representative and dust-free sample division while allowing users to adjust the proportion of the retained sample.
The AF400 is available with bottom cones providing 1, 2 or 3 sample outlets. The division ratio can be adjusted through the width of the dividing slot, allowing the user to select the required sample quantity according to the application. An optional AF300 vibratory feeder can provide controlled and consistent sample feeding.
The AF400 is available with bottom cones providing 1, 2 or 3 sample outlets. The division ratio can be adjusted through the width of the dividing slot, allowing the user to select the required sample quantity according to the application. An optional AF300 vibratory feeder can provide controlled and consistent sample feeding.
Key Advantages
- Adjustable sample reduction ratio
- Representative and dust-free sample portioning
- Feed materials up to 10 mm
- Choice of 1, 2 or 3 sample outlets
- Continuously adjustable dividing-slot width
- Adjustable rotational speed
- Suitable for continuous operation
- Optional AF300 Vibratory Feeder
- Replaceable bottom cones
- 250 mL and 500 mL sample containers
- 30 L reject collector
- Suitable for powder, granular and bulk loose materials
Key Applications
- Agriculture – grains, cereals and seeds
- Soil Analysis – soil samples
- Minerals & Sand – mineral and sand samples
- Metals – particulate metal samples
- Construction Materials – building materials
- Chemicals & Fertilizers – chemicals, reagents and fertilizers
- Industrial Materials – furnace slag and other bulk materials
Working Principle
The sample enters the rotating tube divider through a controlled feed. The material is distributed around the circumference of the bottom cone by a rotating deflector tube.
Depending on the selected bottom cone and dividing-slot width, a defined proportion of the material is directed into the sample collection vessel while the remaining material is collected as reject. This allows the AF400 to reduce larger bulk samples to a representative portion for subsequent analysis.
Depending on the selected bottom cone and dividing-slot width, a defined proportion of the material is directed into the sample collection vessel while the remaining material is collected as reject. This allows the AF400 to reduce larger bulk samples to a representative portion for subsequent analysis.
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
BROCHURE
SPECIFICATIONS
| Specification | AF400 Rotating Tube Divider |
| Feed material | Bulk loose materials |
| Maximum feed size | 10 mm* |
| Number of divisions | 1-3 |
| Speed | 50–120 rpm, customizable |
| Operation time | 1–99 min or continuous |
| Bottom cones | 1, 2 or 3 sample outlets |
| Slot width – 1 outlet | 0–159 mm |
| Slot width – 2 outlets | 0–110 mm |
| Slot width – 3 outlets | 0–53 mm |
| Sample containers | 250 / 500 mL |
| Reject collector | 30 L, customizable |
| Power supply | AC 220 V, 50/60 Hz |
| Power consumption | 100 W |
| Dimensions (W × H × D) | 590 × 1430 × 600 mm |
| Net weight | Approx. 55 kg |
