POTOP TORQUE RHEOMETERS IN MALAYSIA
Advanced Polymer Rheology & Processability Testing
Understanding how polymers behave during mixing, melting and processing is essential for developing high-quality plastic, rubber and composite materials.
A Torque Rheometer is one of the most versatile laboratory instruments for evaluating the processability, rheological behaviour, thermal stability and formulation characteristics of polymer materials under realistic processing conditions. Unlike conventional rheometers that primarily measure viscosity under idealised conditions, a torque rheometer simulates actual manufacturing processes such as compounding, mixing and extrusion, allowing researchers and manufacturers to optimise formulations before production.
As the Authorised Distributor of POTOP Co., Ltd. in Malaysia, LMS Scientific Solution Sdn Bhd supplies advanced laboratory torque rheometers designed for universities, research institutes, polymer manufacturers, compounders and quality control laboratories. POTOP’s torque rheometers combine precise torque measurement, accurate temperature control and modular testing capabilities to deliver reliable data for polymer development, material characterisation and process optimisation.
A Torque Rheometer is one of the most versatile laboratory instruments for evaluating the processability, rheological behaviour, thermal stability and formulation characteristics of polymer materials under realistic processing conditions. Unlike conventional rheometers that primarily measure viscosity under idealised conditions, a torque rheometer simulates actual manufacturing processes such as compounding, mixing and extrusion, allowing researchers and manufacturers to optimise formulations before production.
As the Authorised Distributor of POTOP Co., Ltd. in Malaysia, LMS Scientific Solution Sdn Bhd supplies advanced laboratory torque rheometers designed for universities, research institutes, polymer manufacturers, compounders and quality control laboratories. POTOP’s torque rheometers combine precise torque measurement, accurate temperature control and modular testing capabilities to deliver reliable data for polymer development, material characterisation and process optimisation.
Overview & Applications
Why Use a Torque Rheometer?

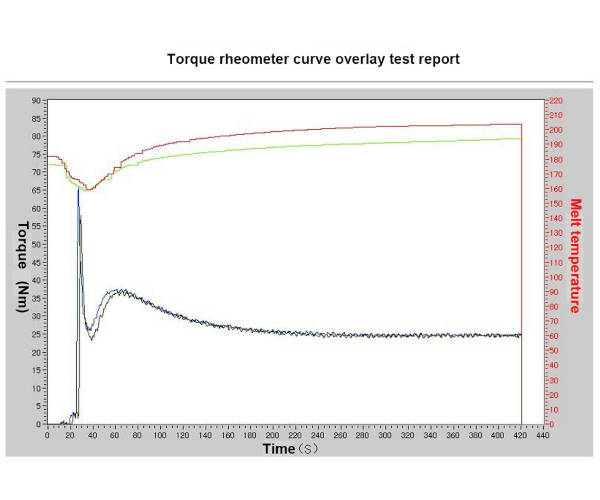

A Torque Rheometer measures the reaction torque generated by material resistance under controlled temperature and rotational shear. By generating continuous torque-versus-time and torque-versus-temperature curves, laboratories can accurately analyze melt behavior, cross-linking, thermal stability, and dynamic shear response before entering full production.
Primary Applications
- Polymer Formulation & Compound R&D: Evaluate resin-additive interactions, filler dispersion, and color masterbatch compatibility.
- Quality Assurance & Raw Material Screening: Detect batch-to-batch variations in raw polymer feedstocks.
- PVC Melt & Plasticizer Testing: Measure PVC dry-blend plasticizer absorption and fusion behavior.
- Thermal & Shear Stability: Analyze time-to-degradation under severe thermal and mechanical processing conditions.
- Rubber Compounding: Evaluate elastomer mixing behavior, plasticisation, carbon black and silica dispersion, overall processing characteristics, and cure preparation (scorch safety and pre-vulcanization behavior).
- Powder Injection Molding (PIM): Formulate sintering feedstocks for ceramic and metal powders.
Frequently Asked Questions (FAQ)
A POTOP Torque Rheometer simulates industrial polymer processing (such as extrusion and internal mixing) on a laboratory scale. It measures key rheological parameters including torque, melt temperature, and viscosity changes over time to evaluate material processability, thermal stability, and formulation performance.
LMS Scientific Solution Sdn Bhd is the official authorized distributor of POTOP products in Malaysia, offering local installation, technical support, application consultation, and maintenance services.
POTOP Torque Rheometers come standard with Roller rotors. Optional rotor configurations include Banbury, Cam, Sigma, and Delta rotors, allowing users to customize shear conditions for thermoplastics, rubbers, or highly filled materials.
For PVC formulations, the instrument accurately measures fusion time, equilibrium torque, plasticizer absorption rate, and thermal degradation onset, helping compounders prevent degradation during full-scale manufacturing.
POTOP Torque Rheometers deliver top-tier performance on par with premium Western brands at a significantly lower cost of ownership. Built with high-grade components—including non-contact dynamic torque sensors, self-developed LabVIEW control software, and high-performance servo motors—they provide advanced capabilities like multi-rotor versatility and precise temperature control without the inflated premium. Combined with local after-sales service and support in Malaysia from LMS Scientific Solution, POTOP provides an unbeatable balance of affordability, precision, and long-term reliability.
Torque Rheometers and Internal Mixers

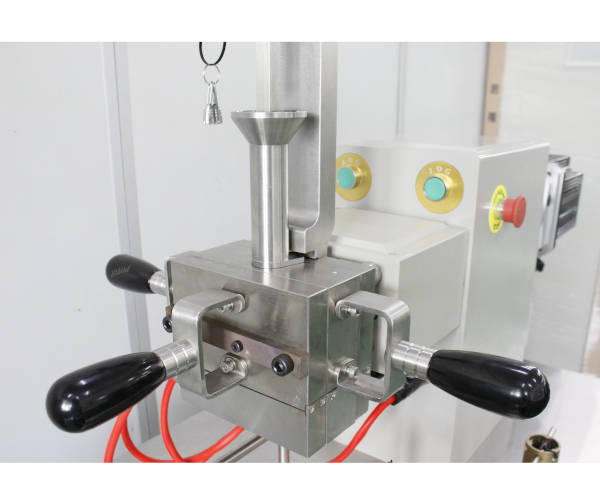

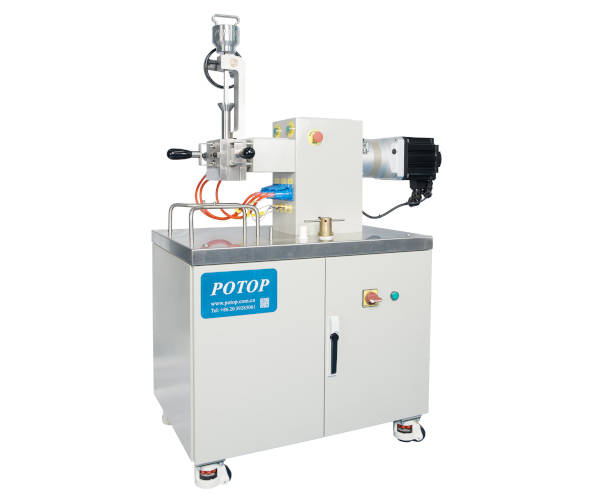

The POTOP RTHI-06/02 is a compact, highly efficient torque rheometer engineered for precise testing on small or high-value polymer samples. Featuring a 55ml mixing chamber, it minimizes raw material consumption while delivering fast thermal response times and exceptional temperature control up to 450°C. Equipped with a non-contact dynamic torque sensor and customizable rotor options, it allows research laboratories and quality control facilities to accurately analyze material processability without sacrificing bench space.

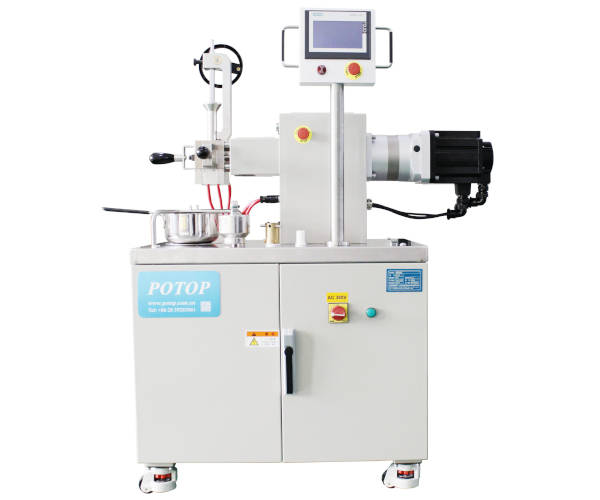

The POTOP LKOI-06 Laboratory Internal Mixer is a compact, high-precision desktop unit designed for the intermittent plasticizing and mixing of rubbers, general plastics, and inorganic powder feedstocks under controlled temperature and pressure. Featuring a 55ml mixing chamber, high-performance 3kW servo drive, and a modular building-block design, it allows rapid rotor disassembly and effortless cleaning between batches. Equipped with an intuitive 7-inch touch screen PLC interface, it provides adaptive speed/temperature control and real-time process parameter graphing for seamless laboratory operations.
The HAAKE™ Rheomex OS Single Screw Extruder System, part of the HAAKE™ PolyLab™ OS platform, is designed for precise analysis of rheological and processing characteristics of various materials. This versatile system allows for the simulation of production processes and the generation of films or profiles with minimal sample amounts. Ideal for research and development, it ensures reliable data and consistent results.
The HAAKE™ Rheomex OS twin screw extruder is a versatile platform for advanced material processing, including compounding and reactive extrusion. Its modular design and precise control make it perfect for research, development, and small-scale production.
The Thermo Scientific™ HAAKE™ PolyLab™ QC Modular Torque Rheometer is your one-stop solution for confident quality control. This versatile system seamlessly integrates with interchangeable mixers, extruders, and user-friendly software, leveraging proven technology for reliable material characterization.
The HAAKE™ Rheomix QC Lab Mixer System is your solution for batch testing and precise characterization of highly viscous materials. Ideal for polymers, elastomers, and additives, this system integrates seamlessly with the HAAKE™ PolyLab™ QC platform, delivering reliable quality control through advanced torque rheometry.
The HAAKE™ Rheomex 19/25 QC single-screw extruder is a versatile and reliable solution for precise polymer extrusion in quality control and research applications. The HAAKE™ CTW100 QC conical twin-screw compounder efficiently mixes polymers, additives, and pigments. Both systems seamlessly integrate with the HAAKE™ PolyLab™ QC platform, enhancing quality control with advanced extrusion capabilities
