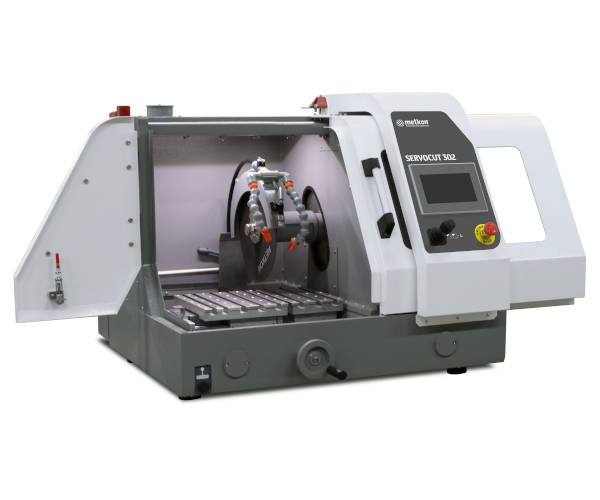

METKON SERVOCUT 302-MA
The Precise Metallographic Cutting Solution
The METKON SERVOCUT 302-MA is a high-precision automatic abrasive cutting machine designed specifically for metallographic sample preparation. It offers a reliable and efficient solution for cutting a wide range of materials, including metals, ceramics, composites, and minerals.
Benefits:
- Improved sample quality: Precise cuts minimize burrs and edge deformation, leading to better quality metallographic samples for accurate analysis.
- Increased efficiency: Automatic cutting saves time and labor compared to manual cutting methods.
- Enhanced reproducibility: Consistent cutting parameters ensure reliable and repeatable results every time.
- Reduced operator error: The automated process minimizes the risk of operator error, leading to more consistent results.
- Safe working environment: The machine’s safety features protect users from potential hazards.
Applications:
The METKON SERVOCUT 302-MA is ideal for a wide range of metallographic applications, including:
- Material characterization
- Failure analysis
- Quality control
- Research and development
The METKON SERVOCUT 302-MA is a powerful and versatile metallographic cutting machine that offers unmatched precision, efficiency, and safety. If you are looking for a reliable solution to improve your sample preparation process, the SERVOCUT 302-MA is the perfect choice for your laboratory.
Contact us today to learn more about the METKON SERVOCUT 302-MA and how it can benefit your metallographic workflow.
Contact us today to learn more about the METKON SERVOCUT 302-MA and how it can benefit your metallographic workflow.
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
SPECIFICATIONS
ACCESSORIES
VIDEO
BROCHURE
FEATURES
- Robust Design: The SERVOCUT 302-MA boasts a sturdy and reliable construction, ensuring durability and longevity.
- Low Noise and Emission Levels: Enjoy a quieter work environment without compromising on cutting power.
- Powerful Cutting Motor: Equipped with a 4kW cutting motor, this machine effortlessly handles even the toughest materials.
- Advanced Techniques and Software: The automatic models feature programmable HMI touch screen controls, enhancing productivity and sample consistency.
- X-Y-Z Axis Control: Precise motor-driven axis controls allow for accurate positioning during cutting.
- Ergonomic Joystick: Smooth and precise control for versatile applications.
- Wide Cutting Capacity: Cut solid stock up to 110 mm in diameter.
SPECIFICATIONS
| MODEL NO | SERVOCUT 302-MA | SERVOCUT 302-MA-AX |
| Max. Wheel Diameter | Ø300 mm | Ø300 mm |
| Max. Cutting Capacity, Ø | Ø110 mm | Ø110 mm |
| Max. Cutting Capacity, H x D | 70 x 200 mm | 70 x 200 mm |
| Z-Axis Travel, (mm) | 125 | 125 |
| Y-Axis Travel, (mm) | 220 | 220 |
| X-Axis Travel, (mm) | – | 95 |
| T-Table Dimension, (mm) | 444 x 275 | (395+95) x 275 |
| T-Slot Dimension, (mm) | 12 mm | 12 mm |
| Cutting Motor Power (S1) | 4 kW | 4 kW |
| Wheel Speed, RPM | 600 – 4000 | 600 – 4000 |
| Cutting Feed rate, (μm/s) | 20 – 5000 | 20 – 5000 |
| HMI Touch Screen | 7 inches | 7 inches |
| Chop Cutting, Z- Axis | Manual | Manual |
| Table Feed Cutting, Y-Axis | Auto | Auto |
| Parallel Cutting, X-Axis | – | Auto |
| Table Oscillating Cutting | – | – |
| Rapid Pulse Cutting | Standard | Standard |
| Smart Feed Control | Standard | Standard |
| StepCut; SegmentCut; DiagonalCut | – | – |
| Size, W x D x H (cm) | 94 x 99 x 76 | 94 x 99 x 76 |
| Weight | 250 kgs | 250 kgs |
| Recirculation Cooling Unit | 80 l | 80 l |
ACCESSORIES
| Cooling Systems for SERVOCUT 302 | |
| GR 1675 | Recirculation Cooling Tank, 80 l, for SERVOCUT 302 |
| YM 8813 | Fine filter sheets for recirculation cooling tank (GR 0018/0019/1675/1945/1988), 10 pcs |
| GR 1559 | Coolant level sensor for recirculation cooling tank Informs operator when coolant level is insufficient. (for MA and AA models) |
| GR 1540 | Magnetic collector rod for recirculation cooling tank |
| GR 1561 | BANDCOOL Band Filter Unit for SERVOCUT 502/402/302 Band filter conveyor for the automatic collection and disposal of swarf, with capacity of 115 l, with fluid level indicator, complete system on wheels, with connection kit. 400V, 3-phase, 50 Hz |
| YM 8878 | Filter roll for BANDCOOL, 50 m, SRC 302/402/502 |
| Accessories for SERVOCUT 302 | |
| GR 1681 | Cabinet for floor model – SERVOCUT 302/GEOCUT 302-S |
| GR 1682 | FUMEFILTER Centrifugal Separator for SERVOCUT 302/402/GEOCUT 302-S Removes coolant mist for better illumination and viewing (To be ordered simultaneously together with the machine order) |
| YM 8833 | Spare Filter Kit for FUMEFILTER (GR 1682) |
| GR 0105 | Laser alignment unit for SERVOCUT 302/GEOCUT 302-S (To be ordered simultaneously together with the machine order) |
| GR 0991-01 | Flange Set with larger diameter, Ø100 mm |
| GR 0998 | Extension Box for cutting long specimens from the left hand side opening, 50 cm length, for SERVOCUT 302/GEOCUT 302-S |
| Clamping Devices for SERVOCUT 302 | |
| GR 0170 | Quick Acting Clamping Vise Assembly, Left, for SERVOCUT 302 (Stainless Steel) |
| GR 0172 | Quick Acting Clamping Vise Assembly, Right, for SERVOCUT 302 (Stainless Steel) |
| GR 0151 | Compact Vise Assembly, Spring Loaded, for METACUT 302/SERVOCUT302 (Stainless Steel) |
| 15 01 | MBU 1011 Vertical Clamping Device with clamping shoe, clamping height up to 90 mm. |
| 15 03 | MK 10 21 Height Block, 60 mm |
| GR 0453 | Fastener vise for longitudinal sectioning of screws, fasteners tubes, etc. from 12 to 45 mm in length |
| GR 0310 | Fastener vise for longitudinal sectioning of screws, ball joint, tubes, etc. from 60 to 100 mm in length |
| GR 0612 | Angular Precision Clamping Device in 3-Axis Direction |
| 15 00 | V-Block for holding parts above table slots |
| GR 0615 | Adjustable V-Support, Small (Height Range: 57 – 67 mm) |
| GR 0616 | Adjustable V-Support, Medium (Height Range: 65 – 85 mm) |
VIDEO
BROCHURE
| SERVOCUT 302 |  Free Download PDF >> |
