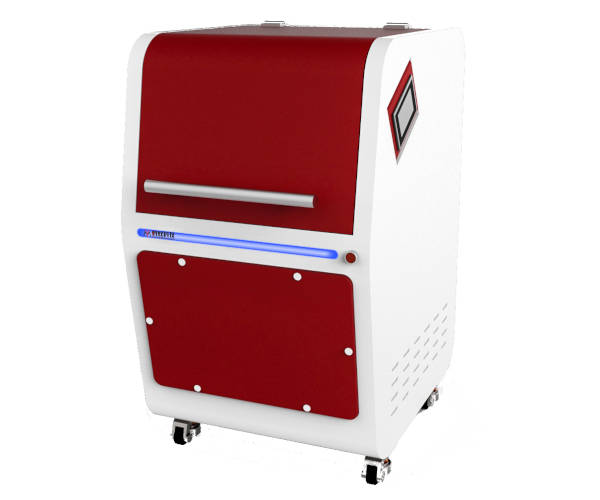

AM400S Planetary Ball Mill
High-Energy Planetary Ball Mill for Fine Grinding and Advanced Materials Research
The Ants Scientific AM400S Planetary Ball Mill is a high-energy laboratory ball mill designed for fine grinding, mixing and homogenization of soft, medium-hard, hard, brittle, fibrous and tough materials.
With 2 or 4 grinding stations, the AM400S provides high sample throughput while maintaining the intensive impact and friction required for fine and ultrafine grinding. It supports both dry and wet grinding, making it suitable for routine laboratory sample preparation as well as advanced materials research.
The planetary grinding mechanism generates high mechanical energy by rotating the grinding jars around their own axis while simultaneously orbiting the sun wheel. The AM400S is suitable for applications including fine grinding, colloidal grinding, nanomaterial preparation, mechanical alloying and mechanochemical research.
With 2 or 4 grinding stations, the AM400S provides high sample throughput while maintaining the intensive impact and friction required for fine and ultrafine grinding. It supports both dry and wet grinding, making it suitable for routine laboratory sample preparation as well as advanced materials research.
The planetary grinding mechanism generates high mechanical energy by rotating the grinding jars around their own axis while simultaneously orbiting the sun wheel. The AM400S is suitable for applications including fine grinding, colloidal grinding, nanomaterial preparation, mechanical alloying and mechanochemical research.
Key Advantages
- High-throughput grinding with 2 or 4 grinding stations
- High-energy planetary grinding for rapid fine and ultrafine size reduction
- Dry and wet grinding for a wide range of laboratory applications
- Suitable for submicron and colloidal grinding under appropriate grinding conditions
- Programmable forward and reverse operation, with interval, pause and two-stage grinding functions
- Stackable grinding jars for increased sample capacity and multiple sample processing
- Wide selection of grinding jar materials including hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide and zirconium oxide
- Long-duration operation for demanding research applications
- 10 stored SOPs and up to 20 programmable cycles for reproducible sample preparation
- Touchscreen control and automatic ventilation for convenient operation
Applications
The AM400S is designed for laboratories requiring high-energy grinding, mixing and homogenization across a wide range of research and sample-preparation applications.
- Materials Science & Nanomaterials: Fine and ultrafine grinding of advanced materials, ceramics, composites, minerals and other materials for materials research and nanomaterial development.
- Mechanical Alloying & Powder Processing: High-energy processing of metal and non-metal powders for mechanical alloying, powder mixing, homogenization and advanced material development.
- Chemistry & Mechanochemistry: Suitable for mechanochemical synthesis, solid-state reactions, chemical activation and other research involving mechanically induced material changes.
- Pharmaceuticals & Fine Chemicals: Fine grinding and homogenization of powders for pharmaceutical and chemical research, formulation development and solid-state studies.
- Minerals, Geology & Metallurgy: Preparation of ores, minerals, rocks, soil and geological materials for research and subsequent analytical testing.
- Ceramics, Glass & Building Materials: Grinding and homogenization of ceramic raw materials, glass, mineral powders and building-material components.
- Environmental & Biological Research: Preparation of soil, sludge, environmental materials and selected biological samples requiring controlled size reduction and homogenization.
- Polymers, Agriculture & Food: Processing of selected polymer materials, agricultural products, biomass and food-related samples for research and laboratory analysis.
AM400S Planetary Ball Mill in Malaysia
LMS Scientific Solution Sdn Bhd is the exclusive distributor of Ants Scientific laboratory sample preparation instruments in Malaysia, providing the AM400S Planetary Ball Mill together with application guidance, installation and technical support.
Contact LMS Scientific for the AM400S Planetary Ball Mill and discuss the appropriate grinding jars, balls and configuration for your application.
Contact LMS Scientific for the AM400S Planetary Ball Mill and discuss the appropriate grinding jars, balls and configuration for your application.
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
BROCHURE
SPECIFICATIONS
| Parameter | AM400S Planetary Ball Mill |
| Suitable sample types | Soft, medium-hard, hard, brittle, fibrous, tough |
| Feed size | ≤15 mm* |
| Final fineness | Approx. <0.1 µm colloidal / <1 µm general grinding* |
| Grinding method | Dry, wet |
| Grinding stations | 2 or 4 |
| Sun wheel speed | 30–450 rpm |
| Effective sun-wheel diameter | ≥360 mm |
| Maximum G-force | Approx. 28.9 g |
| Speed ratio | 1 : −2.5, customizable on demand |
| Grinding jar volume | 12, 50, 80, 115, 125, 250, 500 mL |
| Grinding jar materials | Hardened steel, stainless steel, tungsten carbide, agate, sintered aluminium oxide, zirconium oxide |
| Grinding jars placed | 2 / 4 / 8 depending on configuration |
| Stackable grinding jars | 50 / 80 / 115 mL configurations |
| Grinding ball diameter | 0.1–30 mm; customizable on demand |
| Grinding time | 1 s–99 h 59 min 59 s |
| Operating modes | Forward/reverse, interval, pause, two-stage grinding |
| Stored SOPs | 10 groups |
| Programmable cycles | 1–20 |
| Approx. dimensions W × H × D | 810 × 1220 × 815 mm |
| Approx. net weight | 330 kg |
| Electrical supply | AC 220 V, 50/60 Hz, 1500 W |
