Raytor RT700 Flow-Through Cell Dissolution System (USP Apparatus 4)
Advanced USP 4 Solutions for Complex Dosage Forms in Malaysia
LMS Scientific is proud to offer the Raytor RT700 (RT7), a state-of-the-art flow-through cell dissolution system designed to meet the most demanding requirements of pharmaceutical research and quality control. Whether you are developing poorly soluble drugs or advanced sustained-release formulations, the RT700 provides a physiological environment that traditional vessels cannot replicate.
As a leading provider of laboratory solutions in Malaysia, LMS Scientific offers comprehensive support, including IQ/OQ/PQ qualification and on-site training to ensure your lab stays compliant and efficient.
As a leading provider of laboratory solutions in Malaysia, LMS Scientific offers comprehensive support, including IQ/OQ/PQ qualification and on-site training to ensure your lab stays compliant and efficient.
Precision Engineering for Reliable Results

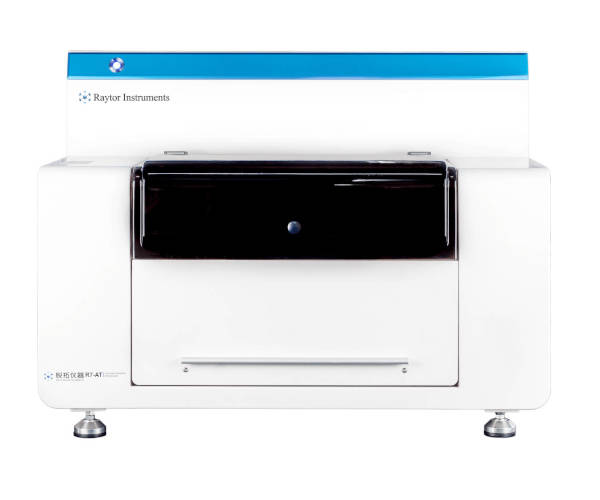

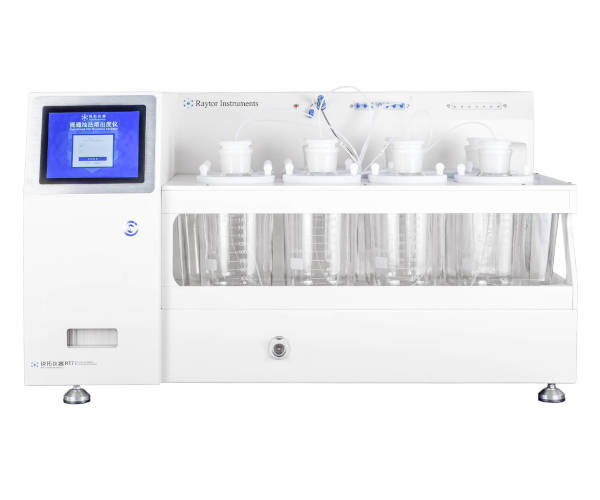

The RT700 system is a modular powerhouse consisting of a seven-channel dissolution unit, a solvent delivery workstation, and an automatic sampling workstation. It is fully compliant with USP Apparatus 4, EP, and ChP 2020 standards.
Advanced Technical Features:
Advanced Technical Features:
- Dual-Rate Programming: The system features two sets of pumps that can be programmed to operate at different flow rates simultaneously, significantly speeding up method development.
- Intelligent Software Switching: Easily toggle between Open-Loop and Closed-Loop methods via software, eliminating the need for manual line changes or switching hardware.
- Piston Syringe Precision: The high-precision pump supports both a 120Hz pulse mode (sine wave) and a no-pulse mode to simulate various gastric conditions.
- Superior Thermal Stability:
- Submerged Testing: Flow cells are completely submerged in the water bath to prevent outside temperature interference.
- 8-Sensor Array: Features seven independent flow cell sensors and one water bath sensor for real-time monitoring.
- Accuracy: Temperature control error is maintained at < ±0.2°C
- Robust Safety & Reliability: * Each of the seven channels is equipped with independent overpressure protection and leakage checking devices.
- 3-Layer Filtration: Circulation basins utilize a triple-layer filter to prevent clogging during long-term studies.
- High-Quality Materials: Uses PTFE tubing and double O-ring seals to prevent sample adsorption and leakage.
Versatile Applications
The Raytor RT700 is designed for almost all drug dosage forms. It is particularly effective for:
- Difficult-to-Dissolve Drugs: Maintaining sink conditions for BCS Class II and IV compounds.
- Complex Formulations: Microspheres, liposomes, suspensions, and semi-solid preparations.
- Long-Term Release: Ideal for implants and extended-release preparations.
- Medical Devices: Adaptable for drug-eluting stents and specialized customized flow cells.
Compliance & Data Integrity
To meet the strict regulatory requirements of the pharmaceutical industry, the RT700 includes:
- 21 CFR Part 11 Compliance: Includes three levels of rights management and full audit trails.
- Long-term Storage: The built-in database stores at least 10 years of experimental records.
- Automated Reporting: Generates electronic reports in PDF format for easy export and backup.
Ready to upgrade your dissolution testing? Contact LMS Scientific today for a consultation on the Raytor RT700 and discover why we are the preferred partner for pharmaceutical labs in Malaysia.
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
VIDEOS
SPECIFICATIONS
Flow-Through Cell Dissolution Unit
- Capacity: 7 independent circulation pools (channels)
- Temperature Uniformity: Maximum temperature difference between channels is <±0.5℃.
- Probe Accuracy: Temperature probe error is <±0.2℃ with a resolution of 0.1 ℃.
- Media Storage: Includes eight 2000mL solvent bottles.
- Flow Rate Control: Adjustable range of 1~40mL/min.
- Flow Precision: Flow rate error is maintained at <±5%
- Media Preheating: Temperature probe error is ≤± 0.5 ℃ with a resolution of 0.1 ℃.
- Stirring Performance: RPM error is ≤± 10%.
- Sampling Channels: 7 dedicated sampling lines
- Flexible Collection: Supports 70mL sample bottle, 10mL test tube holder, and liquid phase vials.
- Sampling Frequency: Supports up to 45 sampling cycles in closed-loop mode and unlimited sampling in open-loop mode.
- Volume Accuracy: Sampling error is ≤± 2% in closed-loop mode and ≤± 5% in open-loop mode.
- Pump Technology: Utilizes a high-precision piston syringe pump for consistent delivery
- Operational Endurance: Designed for unlimited maximum running time, ideal for long-term release studies.
VIDEOS
Experience the future of dissolution testing with the Raytor RT7 Flow-Through Cell Dissolution System. This video showcases the advanced features and automated capabilities of our USP Apparatus 4 compliant system.
See the RT700 Flow-Through Cell Dissolution System in action. This video illustrates the seamless coordination between its three core components: the dissolution apparatus, the media delivery station, and the automated sampling workstation.
See the RT700 Flow-Through Cell Dissolution System in action. This video illustrates the seamless coordination between its three core components: the dissolution apparatus, the media delivery station, and the automated sampling workstation.
