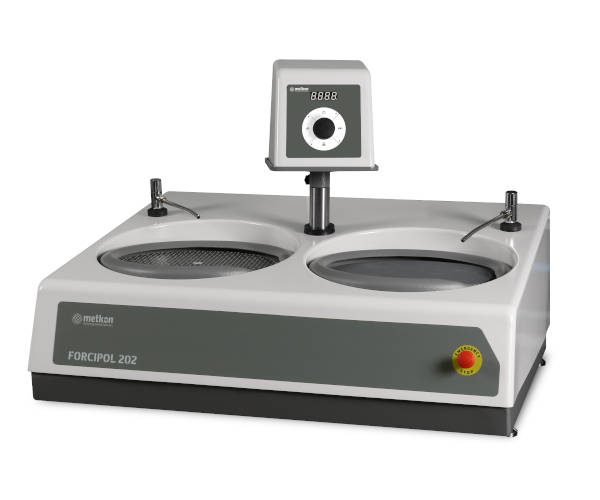

METKON FORCIPOL 202
Unleash Your Microstructure Potential: Double Wheel Grinder / Polisher
Elevate your metallographic sample preparation with the Metkon FORCIPOL 202, a double-wheel grinding and polishing machine designed for precision, efficiency, and affordability:
Effortless Microstructural Exploration:
- Double the power, double the speed: Achieve faster, more efficient sample prep with two 200mm, 250mm, or 300mm grinding/polishing wheels.
- Unmatched versatility: Grind and polish a wide range of materials, from soft metals to hard ceramics, with ease.
- Exceptional surface finish: Achieve mirror-like results for accurate microstructural analysis, free of scratches and defects.
Intuitive Control for Consistent Results:
- Variable speed control (50-600 rpm): Adapt to different materials and grinding/polishing stages for optimal performance.
- User-friendly interface: Intuitive controls and clear displays simplify operation for both experienced and novice users.
- Durable construction: Robust design minimizes vibration and ensures long-lasting performance.
Contact us today to discuss your specific metallographic needs and discover how the FORCIPOL 202 can elevate your sample preparation to the next level.
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
SPECIFICATIONS
ACCESSORIES
ADD-ON 1
ADD-ON 2
VIDEO
BROCHURE
FEATURES
- Choice of Wheel sizes: Choose from 200mm, 250mm, or 300mm wheel diameters to suit your sample size and throughput needs.
- Powerful motor: 0.75kW motor with overload protection ensures smooth operation and consistent grinding/polishing performance.
- Variable speed control: Adjust speed from 50-600 rpm for optimal results with different materials and grinding/polishing stages.
- Durable construction: Robust design minimizes vibration and ensures long-lasting performance.
- Modular configuration: Start with a manual setup using the FORCIPOL Control Unit, perfectly
suited for smaller workloads or budget constraints. Whenever your requirements evolve, you can seamlessly
add a FORCIMAT automatic head at any time, transforming it into a semi-automatic or fully programmable
grinder and polisher.
SPECIFICATIONS
| Number of Wheels | 2 |
| Wheel Diameter | Ø200 / 250 / 300 mm |
| Base Motor Power | 1 HP |
| Wheel Speed | 50-600 RPM |
| Wheel Rotation Direction | CW / CCW |
| Dimensions, WxDxH, (cm) | 87 x 74 x 34 |
| Weight, kgs | 45 |
ACCESSORIES
| Head Units | |
| 30 11 | FORCIPOL Control Unit |
| 30 12 | FORCIMAT 52 Automatic Specimen Mover (Individual Force) |
| 30 14 | FORCIMAT 102 Programmable Automatic Specimen Mover (Individual Force + Central Force) |
| Operational Accessories for FORCIPOL Grinder/Polishers | |
| 200 mm Application | |
| 31 01 | PVC Wheel, 200 mm |
| 31 02 | Aluminium Wheel, 200 mm |
| 31 55 | Splash Guard, 200 mm |
| 31 04 | Paper Ring, 200 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
| 250 mm Application | |
| 31 21 | PVC Wheel, 250 mm |
| 31 42 | Aluminium Wheel, 250 mm |
| 31 65 | Splash Guard, 250 mm |
| 31 24 | Paper Ring, 250 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
| 300 mm Application | |
| 31 31 | PVC Wheel, 300 mm |
| 31 52 | Aluminium Wheel, 300 mm |
| 31 75 | Splash Guard, 300 mm |
| 31 34 | Paper Ring, 300 mm |
| 31 05 | Cover |
| 31 13 | Special Plexiglas Protection Unit, to be used with FORCIPOL 102/TS |
ADD-ON 1
FORCIMAT 52 Automatic Specimen Mover
Transform your metallographic workflow with the FORCIMAT 52, the automatic specimen mover
that maximizes your efficiency and frees you from tedious grinding and polishing tasks.
This innovative attachment seamlessly integrates with all FORCIPOL series grinders/polishers,
transforming your setup into a high-performance sample preparation powerhouse.
Here’s how the FORCIMAT 52 empowers you:
- High-speed processing: Prepare up to 6 samples simultaneously with the robust 100-Watt DC motor, operating at adjustable speeds between 50-150 RPM for optimal performance with various materials.
- Effortless operation: The intuitive touchpad interface simplifies control, allowing you to set individual force (5 N – 60 N) for each sample with ease. The clear gauge provides real-time feedback for precise control.
- Universal compatibility: The FORCIMAT 52 seamlessly integrates with any FORCIPOL grinder/polisher, ensuring a perfect fit and effortless setup. The quick-locking mechanism makes installation and removal a breeze.
- Adaptable to your needs: Choose from a variety of easily exchangeable sample holders with rings ranging from 25 to 50 mm (1″ to 2″) to accommodate various sample sizes and shapes.
- Time-saving convenience: The quick-replacement mechanism allows you to effortlessly swap sample holders in seconds, minimizing downtime and maximizing productivity.
With the FORCIMAT 52, you gain more than just efficiency. You gain the freedom to focus on higher-value tasks, knowing your samples are receiving consistent, high-quality preparation, every time.
TECHNICAL SPECIFICATIONS:
| Operation | Semi-Automatic |
| Application of Force | Individual |
| Control Panel | Touch Pad Controls |
| Program Memory | Last Parameters Retained in Memory |
| Manual Operation Mode | Yes |
| Head Motor Power | 100 W |
| Sample Holder Rotation Direction | CW |
| Sample Holder Speed | 50-150 RPM |
| Individual Force | 5-60 N |
| Central Force | None |
| Grinding Depth Measurement | None |
| Grinding Depth Measurement Accuracy | None |
| Disc Cleaning & Drying Feature | Yes |
| Smart Water Saving Feature | Yes |
| Compatible Instruments | FORCIPOL 102/202 |
| Compressed Air Requirement | 6 Bars |
| Dimensions, WxDxH, (cm) | 26 x 46 x 54 (above FORCIPOL working disc) |
| Weight, kgs | 16 |
ADD-ON 2

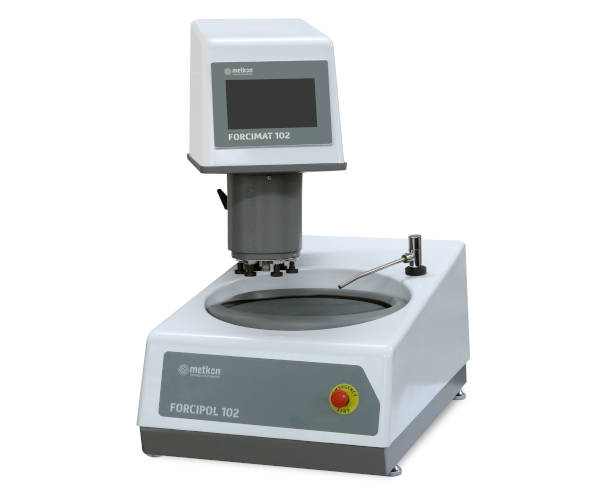

FORCIMAT 102 Programmable Automatic Specimen Mover
Transform your metallographic workflow with the FORCIMAT 52, the automatic specimen mover
that maximizes your efficiency and frees you from tedious grinding and polishing tasks.
This innovative attachment seamlessly integrates with all FORCIPOL series grinders/polishers,
transforming your setup into a high-performance sample preparation powerhouse.
Here’s how the FORCIMAT 52 empowers you:
- High-speed processing: Prepare up to 6 samples simultaneously with the robust 100-Watt DC motor, operating at adjustable speeds between 50-150 RPM for optimal performance with various materials.
- Effortless operation: The intuitive touchpad interface simplifies control, allowing you to set individual force (5 N – 60 N) for each sample with ease. The clear gauge provides real-time feedback for precise control.
- Universal compatibility: The FORCIMAT 52 seamlessly integrates with any FORCIPOL grinder/polisher, ensuring a perfect fit and effortless setup. The quick-locking mechanism makes installation and removal a breeze.
- Adaptable to your needs: Choose from a variety of easily exchangeable sample holders with rings ranging from 25 to 50 mm (1″ to 2″) to accommodate various sample sizes and shapes.
- Time-saving convenience: The quick-replacement mechanism allows you to effortlessly swap sample holders in seconds, minimizing downtime and maximizing productivity.
With the FORCIMAT 52, you gain more than just efficiency. You gain the freedom to focus on higher-value tasks, knowing your samples are receiving consistent, high-quality preparation, every time.
TECHNICAL SPECIFICATIONS:
| Operation | Semi-Automatic |
| Application of Force | Individual |
| Control Panel | Touch Pad Controls |
| Program Memory | Last Parameters Retained in Memory |
| Manual Operation Mode | Yes |
| Head Motor Power | 100 W |
| Sample Holder Rotation Direction | CW |
| Sample Holder Speed | 50-150 RPM |
| Individual Force | 5-60 N |
| Central Force | None |
| Grinding Depth Measurement | None |
| Grinding Depth Measurement Accuracy | None |
| Disc Cleaning & Drying Feature | Yes |
| Smart Water Saving Feature | Yes |
| Compatible Instruments | FORCIPOL 102/202 |
| Compressed Air Requirement | 6 Bars |
| Dimensions, WxDxH, (cm) | 26 x 46 x 54 (above FORCIPOL working disc) |
| Weight, kgs | 16 |
VIDEO
BROCHURE
| Forcipol Series Product Catalogue |  Free Download PDF >> |
