Tape Line (TCA®)
Transparent polymer films are tested using the OCS Tape Line Type TCA® (tape). It is made up of two parts: the OCS Measuring Extruder (ME) and the OCS Modular Film Analyzer with Calender (MFA-Calender). Our calendaring system was created specifically for the wire and cable industry. It presses and cools both sides of the extruded polymer film (tape), ensuring a smooth and consistent surface thickness for optical analysis..
A high-resolution camera system detects contaminants, gels, black specks, fibers, and metal particles in the Tape Quality Analyzer (TQA100). The LASER Marking System (LM100) or the Label Printer (LP100) marks the detected errors. The polymer film is then cut into strips and sorted into appropriate containers using the OCS Film Cutter and Sorter (OFC100).
Testable Raw Materials: Pellets/transparent polymer films (tape), powder and flakes
A high-resolution camera system detects contaminants, gels, black specks, fibers, and metal particles in the Tape Quality Analyzer (TQA100). The LASER Marking System (LM100) or the Label Printer (LP100) marks the detected errors. The polymer film is then cut into strips and sorted into appropriate containers using the OCS Film Cutter and Sorter (OFC100).
Testable Raw Materials: Pellets/transparent polymer films (tape), powder and flakes
REQUEST A QUOTE / ENQUIRY FORM
FEATURES
MODULES INCLUDED
Add-on 1
Add-on 2
Add-on 3
Add-on 4
FEATURES
- Measuring Extruder (ME) comes with flexible height adjustment (infusion position)
- Maintenance and cleaning positions of the Measuring Extruder (ME) can be approached via electric motor
- Modular architecture of the Modular Film Analyser (MFA) to facilitate customisation of additional measuring devices
- Operation via touch panel with data trend as well as optical and acoustic alarm functions
- All system parameters are monitored and saved in the touch panel control system
- Several options for data communication available
MODULES INCLUDED
- Measuring Extruder (ME20/ME25/ME30) with fix lip die of 50–75 mm
- Modular Film Analyser with Calender (MFA-Calender)
- Tape Quality Analyser (TQA100)
Add-on 1

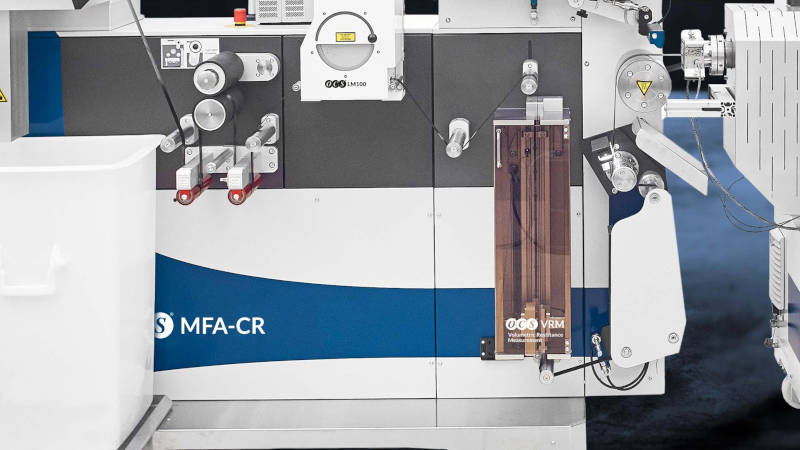

Volumetric Resistance Measurement (VRM)
The Volumetric Resistance Measurement (VRM) is an optional measurement system for the Modular Film Analyser (MFA). It enables the inline determination of the specific electrical resistance of conductive polymer films. The measurement is performed by means of a movable measuring head in which measuring and compensation electrodes are integrated. Another feature is the easy operation of the Volumetric Resistance Measurement via the touch panel of the MFA.Testable Materials: Conductive polymer films (tape)
Features
- Measuring head with several compensation electrodes
- Easy operation via the touch panel of the Modular Film Analyser (MFA)
- Security door (including sensor) for monitoring the measurement unit
- OCS Tape Line (SSA)
- OCS Modular Film Analyser (MFA)
Add-on 2
Label Printer (LP100)
The OCS Label Printer (LP100) ensures the highest quality standards with regard to the labelling of, and repair of defects on, polymer films. Simple operation enables reliable and fast printing.Features
- Reliable and fast printing
- Precise impression
- Easy operation
- Compact design
- Meets the highest quality standards
- OCS Tape Line
- OCS Modular Film Analyser (MFA)
Add-on 3
LASER Marking System (LM100)
The OCS LASER Marking System is designed and manufactured using state-of-the-art technology. The LM100 can be used to mark or label defects on polymer films (tape). The labelling and marking settings as well as the power of the laser can be configured with the operator software to the corresponding product requirements. The LASER Marking System consists of laser, control and suction unit.The laser unit essentially consists of a class 4 air-cooled laser, a two-part protective cover, a viewing window and a pneumatically swivelling film guide. The laser unit has two air filters so that neither dirt nor dust accumulates inside its CO2 laser.
Features
- Laser unit with class 4 air-cooled CO2 laser
- Two-part protective cover completely encloses the danger area
- Two air filters prevent dirt and dust from accumulating in the laser unit
- LED lighting
- Pneumatically swivelling film guide
- Adjustable movement speed of the swivel arms
- Viewing window on the laser unit
- Operator software with a wide range of labelling and marking settings
- OCS Tape Line
- OCS Modular Film Analyser (MFA)
Add-on 4

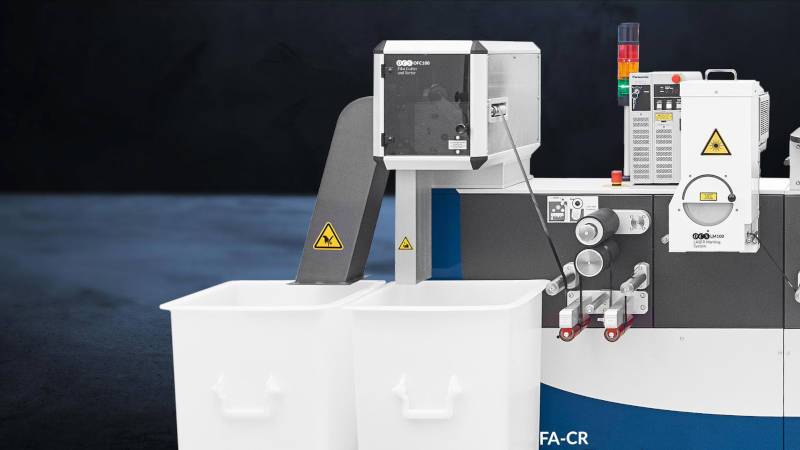

Film Cutter and Sorter (OFC100)
The OCS Film Cutter and Sorter (OFC100) performs two tasks in one system. First, it continuously shreds the polymer film into sections of consistant length (specified value) and ejects them. The ejected film cuttings are then collected in a collection container. The OFC100 automatically sorts out the marked and contaminated film sections with the help of the software. These marked sections are significantly longer for purposes of further analysis and are ejected separately via the sorting ejector into another collection container. Here, too, the length of the marked film sections can be defined.Features
- Automated cutting and sorting unit
- Consistent and definable section length
- Working width of up to 100 mm
- Material thickness of 500 μm
- Automatic sorting of the contaminated/non-contaminated strips into the respective collection container
- Cutting unit completely enclosed and locked by safety circuit and electrical door interlock
- OCS Tape Line
- OCS Modular Film Analyser (MFA)
| Working width | Up to 100 mm |
| Max. material thickness | 500 μm |
