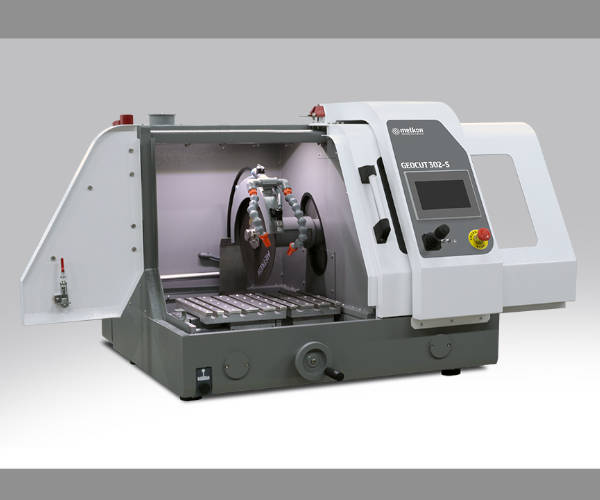

METKON GEOCUT 302-S
The All-in-One Geological Cutting Machine for Perfect Petrographic Samples
Cut rocks, minerals, ceramics and more with superior precision and efficiency.
The Metkon GEOCUT 302-S is an advanced geological cutting machine designed to meet the demanding needs of petrographic analysis. Whether you’re a geologist, material scientist, or researcher, the GEOCUT 302-S provides unmatched versatility and performance for preparing high-quality rock, mineral, ceramic, and glass samples.
Why is Sample Preparation Important in Petrography?
Petrography is the study of rocks and their composition. In order to accurately analyze a rock’s mineral content and texture, a thin section must be created. This thin section is a wafer-thin slice of the rock mounted on a glass slide. The quality of the thin section directly affects the quality of the petrographic analysis.
GEOCUT 302-S: The Perfect Solution for Petrographic Sample Preparation
The GEOCUT 302-S excels in petrographic sample preparation due to its:
- Superior Cutting Ability: The robust 4 kW motor and ability to use large diamond blades (up to Ø300 mm) ensure fast, clean cuts through even the hardest rocks and minerals.
- Precise Axis Control: The X-Y cross table allows for precise positioning and control during cutting, resulting in minimal sample damage and high-quality thin sections.
- Versatility for Different Sample Shapes: A variety of clamping systems are available to accommodate both large and irregular shaped samples, ensuring efficient cutting of any petrographic specimen.
- Durable Design: The GEOCUT 302-S features a rugged alloy base casting for stability and a long machine lifespan.
Additional Benefits of the GEOCUT 302-S:
- Low Noise and Emissions: For a quieter and more environmentally friendly operation.
- Easy Sample Handling: Sliding door and side openings provide exceptional access for sample loading and unloading.
- Water Cooling Compatibility: Connect directly to city water or use a recirculating coolant tank for optimal blade performance and sample protection.
Invest in the GEOCUT 302-S and experience the difference in petrographic sample preparation. Contact us today for a quote!
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
ACCESSORIES
BROCHURE
APPLICATIONS
SPECIFICATIONS
| Model | GEOCUT 302-S |
| Max. Wheel Diameter | Ø300 mm |
| Max. Cutting Capacity, Ø | Ø110 mm |
| Max. Cutting Capacity, H x D | #70 x 200 mm |
| Z-Axis Travel, (mm) | 125 |
| Y-Axis Travel, (mm) | 220 |
| X-Axis Travel, (mm) | 95 |
| T-Table Dimension, (mm) | (395 + 95) x 275 |
| T-Slot Dimension, (mm) | 12 mm |
| Cutting Motor Power (S1) | 4 kW |
| Wheel Speed, RPM | 2800 |
| Chop Cutting, Z- Axis | Manual |
| Table Feed Cutting, Y-Axis | Automatic |
| Parallel Cutting, X-Axis | Automatic |
| Size W x D x H, (cm) | 90 x 94 x 66.5 |
| Weight | 250 kgs |
ACCESSORIES
| Accessories for GEOCUT 302-S | |
| GR 1945 | Recirculating coolant tank, stainless steel, 55 l capacity, with pump, level indicator, hoses etc. |
| YM 8813 | Fine filter sheets for recirculation cooling tank (GR 0018/0019/1675/1945/1988), 10 pcs. |
| GR 1681 | Cabinet for floor model – SERVOCUT 302/GEOCUT 302-S |
| GR 1682 | FUMEFILTER Centrifugal Separator for SERVOCUT 302/402/GEOCUT 302-S Removes coolant mist for better illumination and viewing (To be ordered simultaneously together with the machine order) |
| YM 8833 | Spare Filter Kit for FUMEFILTER (GR 1682) |
| GR 0105 | Laser alignment unit for SERVOCUT 302/GEOCUT 302-S (To be ordered simultaneously together with the machine order) |
| GR 0991-01 | Flange Set with larger diameter, Ø100 mm |
| GR 1680 | Manual/Auto Table drive system with electromagnetic clutch (y-axis) |
| GR 0998 | Extension Box for cutting long specimens from the left-hand side opening, 50 cm length, for SERVOCUT 302/GEOCUT 302-S |
| GR 1397-00 | Water Filtering and Pressure Regulator System for city water inlet. Keeps the water pressure at the appropriate level and protects from sudden pressure spikes. Filtering out impurities in the water and prevents calcification. |
| YM 3824-00 | Spare Siliphos Cartridge Filter (for Water Filtering and Pressure Regulator System (GR 1397-00)) |
| Clamping Devices for GEOCUT 302-S | |
| GR 1811 | Quick Clamping Device for round petrographic specimens |
| GR 1812 | Universal vise for large specimens, rocks, etc. |
| 15 08 | KKP 040 Vertical Clamping Device, with clamp. shoe, GEOCUT 302-S/GEOFORM 102 |
BROCHURE
| GEOLINE |  Free Download PDF >> |
APPLICATIONS
| Petrography Guide | Free Download PDF >> |
