INNOVATEST GEMINI 6200G2
Next-Generation Rockwell Hardness Testing
The INNOVATEST GEMINI 6200G2 Rockwell Hardness Tester represents the pinnacle of modern Rockwell testing technology. Built for maximum accuracy, automation, and versatility, it combines an all-linear force application system, descending test head, and fixed workpiece position to eliminate tolerance errors and deliver repeatable results.
Key Features of INNOVATEST GEMINI 6200G2
- Advanced All-Linear Force Application System: Descending test head with fixed workpiece position for highest accuracy. Eliminates tolerance errors in depth measurement.
- High-Performance Testing Technology: Load cell, force feedback, closed-loop system. Fully automatic, stepper or servo motor driven.
- IMPRESSIONS™ Advanced Hardness Software: Controls core functions and accessories such as Jominy and motorized stages. Offers powerful reporting, analysis, and data integration.

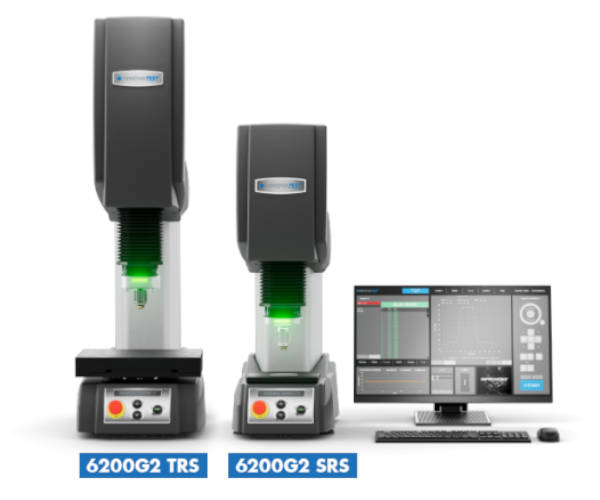

- Flexible Configurations:
- Short version (S150): Compact, high-precision for laboratories.
- Tall version (T300): Ideal for workshops and larger industrial parts.
- Large Integrated Test Table: Fits a wide variety of samples. Supports V-anvils and stage accessories.
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
APPLICATIONS
VIDEO
SPECIFICATIONS
| Scales | Rockwell, Superficial Rockwell, Brinell, HVD/HBD, Plastics & Carbon |
| Test Forces | 1 kgf – 250 kgf (load cell, closed loop force application system) |
| Load Application System | Fully automatic, load cell, closed loop, force feedback |
| Overview Camera | 13 MP stage overview camera, variable field of view |
| Display | 24” landscape mode capacitive touchscreen |
| Indenters | IRIS™ intelligent indenter system |
| Control | Integrated controller, i7 processor, Dual MSSD RAID storage or external PC |
| Laser | Cross laser positioning system |
| Illumination | Multi-color LED machine status indicator |
| Z-Axis | Descending test head, collision detection, CNC motorized (T model), ball bearing spindle, fast up/down & start buttons |
| Stages | Manual or motorized |
| Workpiece Height | Short version (S): 150 mm, Tall version (T): 300 mm |
| Output | XML, CSV, Q-DAS certified (optional) |
| Software | Wide range of software features, plug-ins, add-ons, Q-DAS certified |
APPLICATIONS
The GEMINI 6200G2 is designed for precision hardness testing across a wide range of industries, including:
- Aerospace – Aircraft engine components and structural parts.
- Automotive – Testing of vehicle parts and assemblies.
- Production Lines – Inline quality control and process monitoring.
- General QA & Material Certification – Reliable hardness testing across metals and alloys.
- Research Laboratories – High-standard R&D applications requiring ultimate accuracy.
