INNOVATEST GEMINI 6100G2
ROCKWELL Hardness Tester
LMS Scientific Solution Sdn Bhd is the official distributor of INNOVATEST hardness testers in Malaysia, delivering advanced material testing solutions to industries and research institutions. The INNOVATEST GEMINI 6100G2 Rockwell Hardness Tester is a state-of-the-art system that combines accuracy, automation, and flexibility for Rockwell and multiple hardness testing methods.
With its all-linear force application system, descending test head, and fixed workpiece position, the GEMINI 6100G2 ensures error-free depth measurement and repeatable results, making it a top choice for laboratories and production environments in Malaysia.
With its all-linear force application system, descending test head, and fixed workpiece position, the GEMINI 6100G2 ensures error-free depth measurement and repeatable results, making it a top choice for laboratories and production environments in Malaysia.
Key Features of INNOVATEST GEMINI 6100G2
- All-Linear Force Application System: Descending test head with fixed workpiece position eliminates tolerance errors.
- High Accuracy: Load cell, force feedback, closed-loop system for precise force control.
- Automation Ready: Fully automatic, stepper motor driven for high throughput testing.
- User-Friendly I-TOUCH™ Software: Full control of testing functions with advanced data storage and USB connectivity.
- IRIS™ Intelligent Indenter System: Guarantees reliable and repeatable indentation.

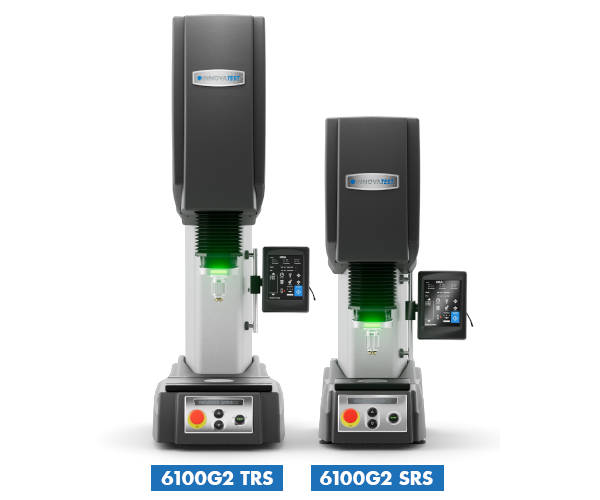

- Versatile Platform: Supports different workpiece sizes (150 mm short version / 300 mm tall version).
- Large Test Table: Space for V-anvils and stage accessories, ideal for small to large samples.
- Dual Configurations:
- Short version (S150): Designed for high-end laboratories.
- Tall version (T300): Suited for workshops and larger industrial parts.
Why Choose LMS Scientific in Malaysia?
As the authorized INNOVATEST distributor in Malaysia, LMS Scientific offers:
- Genuine hardness testing equipment with local warranty
- Technical support, service, and calibration assistance
- Application training for your team
- Fast and reliable after-sales support
REQUEST A QUOTE / ENQUIRY FORM
SPECIFICATIONS
APPLICATIONS
VIDEO
SPECIFICATIONS
| Scales | Rockwell, Superficial Rockwell, Brinell, HVD/HBD, Plastics & Carbon |
| Test Forces | 1 kgf – 250 kgf (load cell, closed loop system) |
| 1 kgf – 250 kgf (load cell, closed loop system) | Fully automatic, load cell, closed loop, force feedback |
| Microscope | Optional Brinell scales with manual microscope |
| Display | 6.5” industrial full-color touchscreen |
| Indenters | IRIS™ intelligent indenter system |
| Illumination | Multi-color LED machine status indicator |
| Z-Axis | Descending test head, collision detection, ball bearing spindle, fast up/down & start buttons on front panel |
| Workpiece Height | Short version (S): 150 mm, Tall version (T): 300 mm |
| Software Functions | Number of tests, Mean, Standard Deviation, Min/Max, Range, CP, CPk, individual readings list, storage memory, dwell time, test force setting, scale selection, calibration |
APPLICATIONS
The GEMINI 6100G2 Rockwell Hardness Tester is ideal for industries and labs requiring consistent, high-standard hardness testing:
- Aerospace: Aircraft engine components
- Automotive: Vehicle parts, components testing
- Production: Inline quality control
- Materials Testing Labs: General QA & R&D applications
- Plastics & composites testing
