FOM photonR2R
Optimized for In-Situ & High-Throughput Research

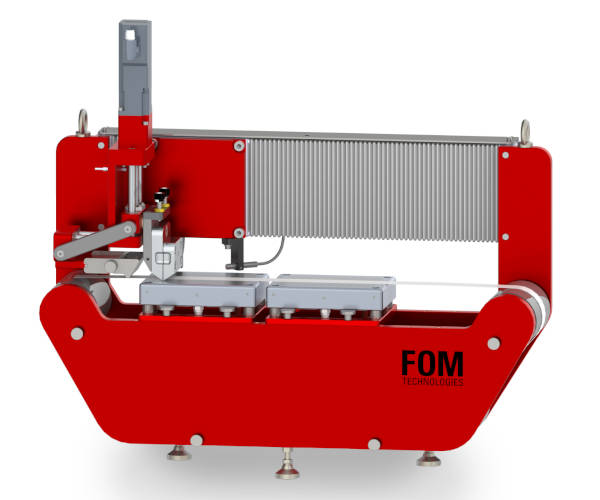

The FOM photonR2R is an autonomous, versatile, and cost-efficient platform for in-situ material characterization. It combines the compactness and functionality of a lab-scale coater with the precision of a production system.
This coater is specifically designed to facilitate high-throughput studies at various synchrotron beamlines and laboratories. Its compact size allows for easy integration into a fume hood or lab space, and it can be moved around effortlessly.
All components and software are optimized for remote control, enabling you to collect more data faster and more efficiently. With its unparalleled versatility, precision, and process reproducibility, the FOM photonR2R is ideal for a wide range of materials and coating processes, making it a powerful tool for both industry and academia.
ENQUIRY FORM
- Dual Coating Modes & Substrate Versatility: The system supports both roll-to-roll and sheet-to-sheet coating modes. This flexibility is complemented by an interchangeable, microporous vacuum substrate holder, which can be tailored to your needs and is designed for both rigid and flexible substrates.

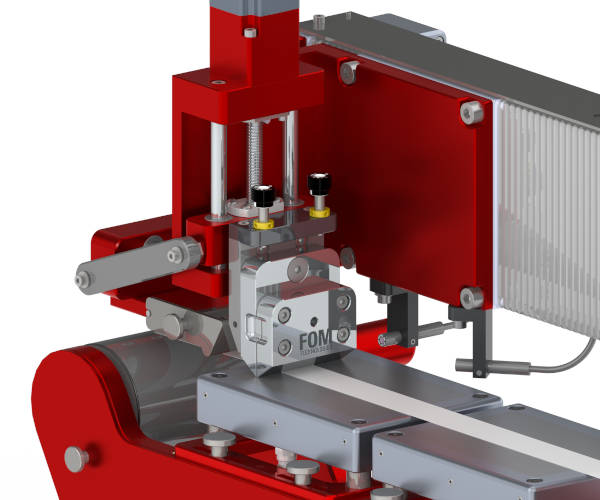

- Precision and Efficiency: Achieve uniform dry film thicknesses from nanometers to microns, with a fine coating width from 0.1 mm to 50 mm. An integrated, software-controlled pump allows for precise wet film thickness, while a self-cleaning slot-die head system reduces maintenance and material waste. The system is compatible with fluids up to 20,000 cPs.
- Automated & Accessible Control: All coating processes are automated via an intuitive graphical user interface (GUI). You can store your coating protocols locally and access the system remotely from a PC or tablet without needing local software installation.
- Designed for Your Environment: The compact design ensures seamless fume hood and glove box integration, making it ideal for sensitive materials and controlled environments.
