FOM compact moduloR2R Slot Die Coater: Your Bridge from Lab to Fab
The Next Step in Scalable Thin-Film Production

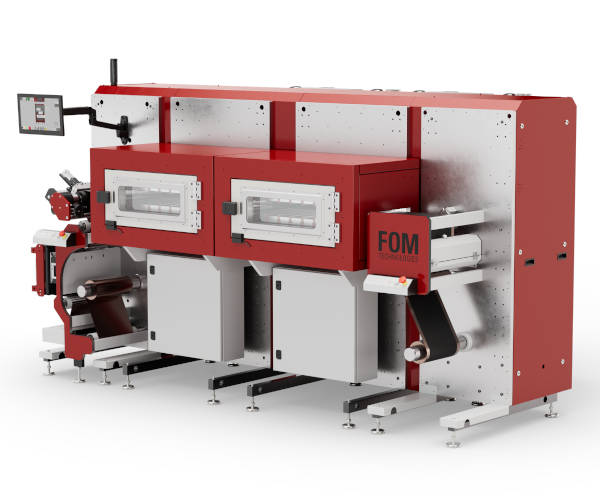

The FOM compact moduloR2R is a high-precision, roll-to-roll (R2R) slot die coater designed to bridge the gap between lab-scale research and full-scale industrial production. It provides a compact, yet powerful, platform for pilot-scale development and small-batch manufacturing of flexible electronics, energy devices, and advanced materials. For researchers and companies looking to scale their R&D results, the compact moduloR2R is the logical and cost-effective solution.
Leveraging the proven technology of FOM Technologies' larger systems, this compact model provides an ideal environment for process optimization, material testing, and product validation on a continuous web.
ENQUIRY FORM
- Precision Roll-to-Roll Coating: This roll-to-roll slot die coater offers a continuous, non-contact process with a coating width of up to 300 mm and micron-level precision. It ensures uniform and reproducible dry film thicknesses ranging from nanometers to microns.

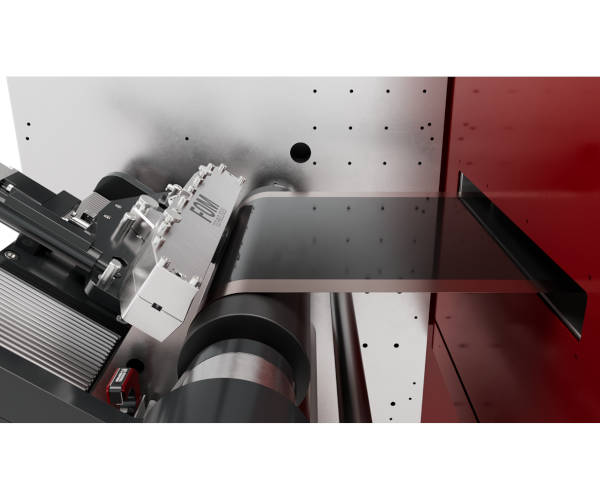

- Intuitive & Automated Control: The system is controlled by an advanced coating software with an intuitive graphical user interface. It features a motorized slot-die head with +/- 1 µm precision for height and tilt adjustments, along with an adjustable coating angle from 0-90 degrees. You can easily save coating protocols both locally and in the cloud.
- Flexible & Adaptable Design: Its compact and modular design makes it easy to integrate into your existing lab. It includes bi-directional web handling and tension control for maximum versatility and offers multiple options for drying and curing. Plus, roller replacement is convenient and easy, minimizing downtime.
