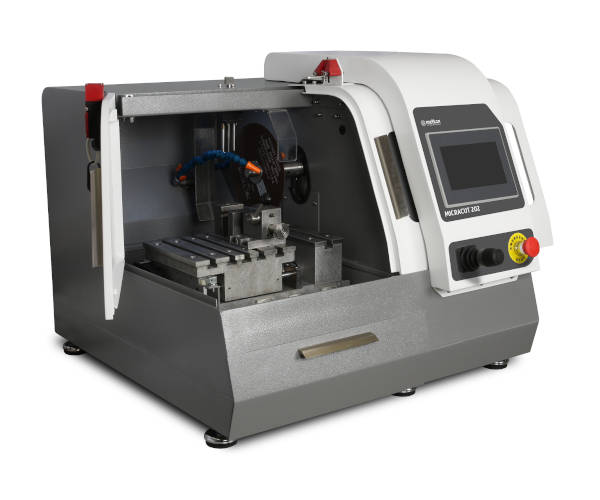

METKON MICRACUT 202: Unleash Precision Cutting Power in Your Lab

Experience unparalleled sample preparation for materialography with the Metkon MICRACUT 202, a fully programmable high-speed precision cut-off machine designed for meticulous and deformation-free cutting of various materials. Whether you’re in metallurgy, geology, electronics, research, or industrial laboratories, the MICRACUT 202 delivers exceptional performance.

Cut with Confidence:

• Wide Material Compatibility: Master diverse cutting tasks with the ability to handle brittle/ductile metals, composites, ceramics, rocks, electronic components, biomaterials, and more.
• Preserved Sample Integrity: Achieve minimal kerf loss and minimal deformation for accurate analysis.
• Microscopy-Ready Surfaces: Minimize post-cut polishing with smooth, high-quality cut surfaces.

Built for Stability and Control:

• Rock-Solid Construction: The heavy-duty aluminium frame guarantees stability and vibration-free operation.
• Enclosed Safety: The fully enclosed cutting compartment prioritizes safety while offering easy access from all sides.
• Powerful Performance: The 1.1 kW motor delivers exceptional cutting power with variable speeds (100-5000 rpm) for both high-speed and low-speed applications.

Unmatched Versatility:

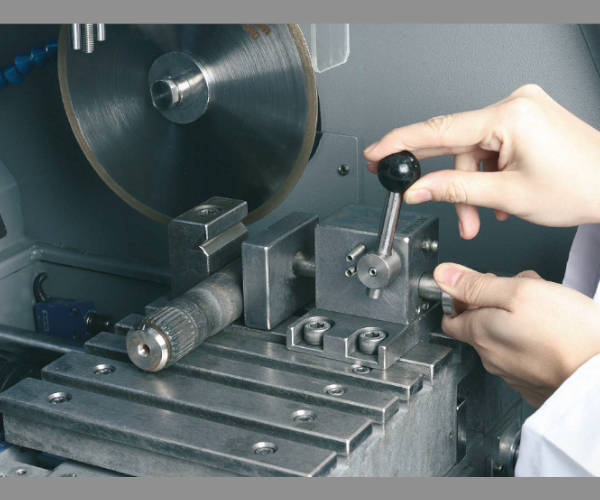

• Extensive Clamping Options: Utilize the T-slotted table and various clamping tools to accommodate diverse specimen shapes and sizes.
• Optional X-Axis Drive: Achieve precise specimen positioning with the motorized X-axis table (optional).
• Automatic Height Adjustment (Z-Axis): Effortlessly compensate for wheel wear with automatic cut-off wheel height adjustment.
• Broad Cut-Off Wheel Compatibility: Utilize diamond, CBN, and abrasive wheels up to 200 mm in diameter with various flange sets.
• Specimen Vises and Accessories: Choose from a wide range of vises and accessories to suit your specific needs.

Effortless Control and Automation:

• Intuitive HMI Touch Screen: Program cutting parameters with ease using the user-friendly touch screen interface.

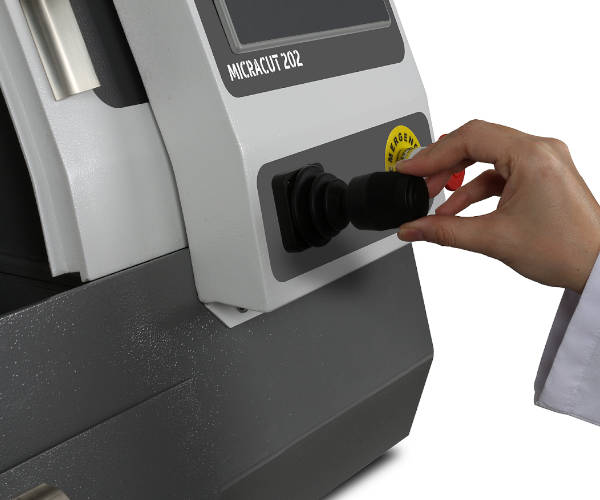

• Ergonomic Joystick: Ensure smooth and precise specimen positioning in X, Y, and Z axes.
• Predefined Cutting Parameters: Set cutting force and feed rate (0.005-3 mm/sec) directly on the touch screen LCD.
• Automatic Feed Rate Adjustment: Safeguard your samples and machine with automatic feed rate adjustments for optimal cutting.
• Pulse Cutting Mode: Effortlessly tackle challenging materials with the standard pulse cutting mode.

Advanced Functionality:

• Programmable Multi-Slice Cutting: Create slices of uniform thickness or customize thickness variations based on your needs.
• Three Stop Modes: Choose from "Stay at End of Cutting," "Back to Starting Point," or "Back to Reference Point" to optimize your workflow.
• 99-Program Library: Save and recall frequently used cutting parameters with ease, associating them with specific specimens.
• Metkon Consumables Database: Simplify consumable selection with the integrated database.

Elevate your metallographic sample preparation to new heights with the Metkon MICRACUT 202. Contact us today to learn more about how this innovative machine can empower your laboratory!
