ROCKWELL HARDNESS TESTER

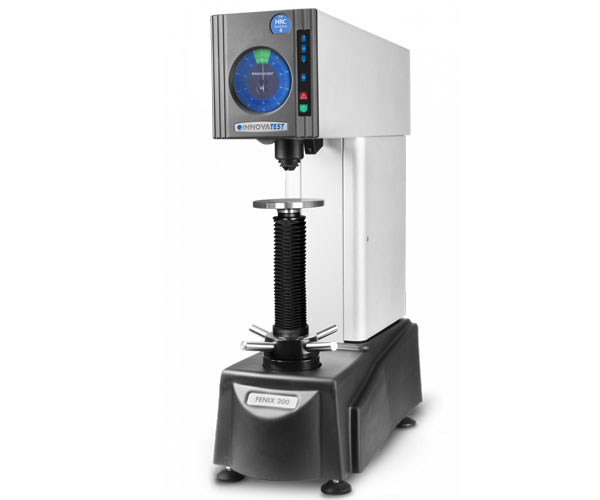

Fenix 200 ACL


Utilizing the current technology of load cell, closed loop, force feedback, test force application system, it is totally a unique class of its own. It is able to perform Rockwell and Brinell hardness testing with excellent precision, minus the shortcomings of a complex mechanical dead weight system.

ENQUIRY FORM
Fenix 200 ACL

  • Load cell, closed loop, force feedback, force application system, error < 0, 25%
  • Rockwell scales A, B, C, D, E, F, G, H, K, L, M, P, R, S, V
  • Brinell scales HBW1/10, HBW1/30, HBW2.5/15.625, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/25, HBW5/62.5, HBW5/125, HBW5/187.5, HBW10/100
  • Digital display for scale indication, dwell time count down and calibration function
  • Start/stop & menu selection buttons
  • Adjustable dial indicator with 0.5 HR Rockwell units
  • Throat depth 150mm
  • Working height 240mm
  • Machine weight (net) 116kg
  • Machine dimensions H765mm/W270mm/D555mm
