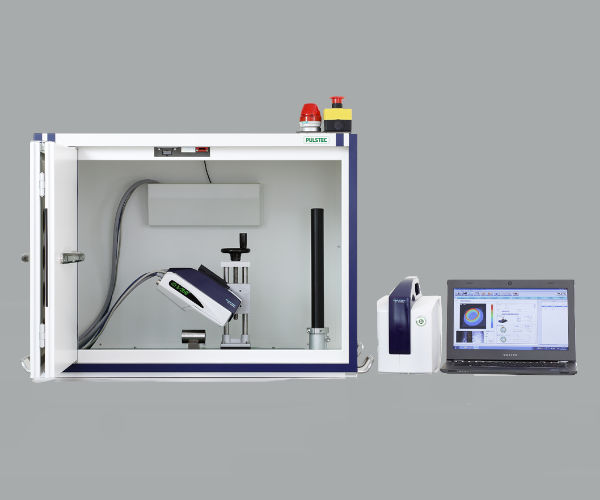

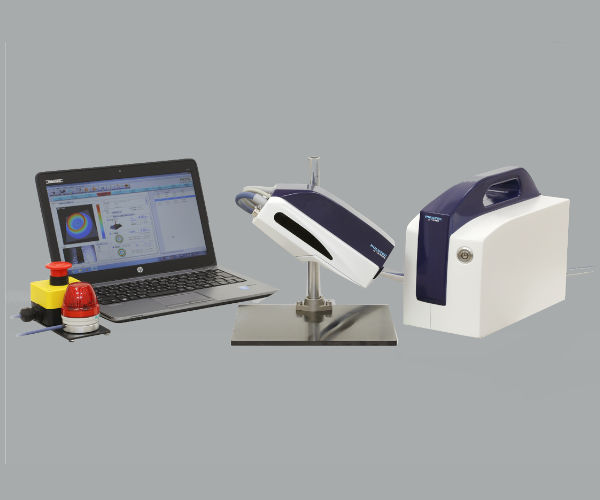

µ-X360s Portable X-ray Residual Stress Analyser
The
Pulstecµ-X360s is the world’s smallest and lightest residual stress analyzer,
which utilized a non-destructive method to measure the residual stress, retained
austenite and FWHM database of metals based on X-Ray diffraction technique.
For more information, please visit www.pulstec.co.jp/en/product/x-ray/
REQUEST A QUOTE
- Portable & light weight - compact 2.4kg sensor unit; able to measure the internal of pipe down to diameter of 170mm
- Easy setup - sample position tolerance +-5mm (built-in marker and CCD camera to assist sample positioning)
- Fast measurement speed - 60 second per measurement point
- High reliability & repeatability - measurement by cos α method ensures reliable and repeatable data; the 2D detector captures complete Debye ring
- Safety - low power X-ray emission due to high sensitivity of detector; simple air cooling system
| Item | New model (µ-X360s) |
| Collimator size | Standard: Φ1.0mm (Illuminated surface: approx. Φ2.0mm) |
| Maximum measurement distance (for Ferrite samples) |
51mm |
| X-ray tube voltage & current | 30KV / 1.5mA max. |
| X-ray tube | Cr / Co / Cu / V / Mn Possible to exchange the X-ray tube by user |
| Measurement method | Single incident angle method (cos α method) |
| Measurement item | Residual stress / FWHM / Retained austenite (optional) |
| Target material | Ferrite, aluminum, nickel, titanium, ceramics and etc. |
| Weight | Sensor unit: approx. 2.4kg Power supply unit: approx. 6.2kg |
| Sensor unit / Power supply unit Size / Weight | Sensor unit: W114 x H107 x D213 (mm) / 2.4kg Power supply unit: W159 x H235 x D289 (mm) / 6.2kg |
| CE marking | Certified |
| Measurement time | 60 secs / measurement point |
| Gyro sensor | Display the sensor unit angle |
