Innovatest NEMESIS 9600G2 Universal Hardness Tester
As the authorized distributor of Innovatest in Malaysia, LMS Scientific Solution Sdn Bhd is proud to present the NEMESIS 9600G2, a new benchmark in heavy-duty, floor-standing hardness testing. Engineered for endurance and designed for precision, this powerful universal hardness tester is an ideal solution for a wide range of industrial and research applications across Malaysia.
The NEMESIS 9600G2 seamlessly combines multiple testing methods—including Rockwell, Vickers, Knoop, and Brinell-into one advanced platform. This second-generation system elevates the proven performance of its predecessor with a revolutionary force application system, a redesigned optical setup, and an advanced 9-position motorized turret.
This universal hardness testing machine is equipped with an integrated suite of tools for maximum flexibility and accuracy. It features indenters, objectives, a cross-laser, a touch probe, and a dual camera system with 18MP and 20MP cameras. The cameras include motorized zoom and high-speed autofocus, ensuring fast and precise measurements for even the most demanding requirements.
ENQUIRY FORM

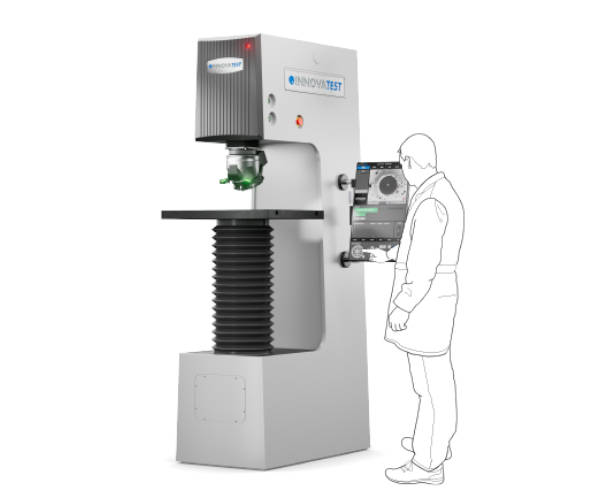

Nemesis 9600G2 1

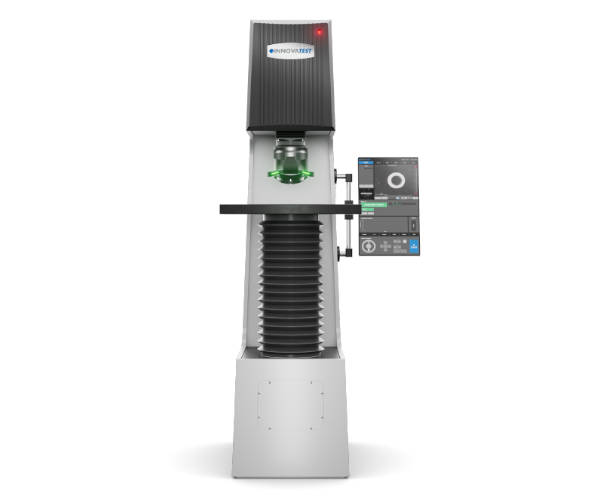

Nemesis 9600G2 2
- Scales: Rockwell, Superficial Rockwell, Brinell, Vickers, Knoop, HVT & HBT, Plastic ISO 2039/1, Carbon
- Test Forces: 200gf – 3000kgf
- Camera: 20MP full-color measurement camera with bright white LED TTL illumination
- Overview Camera: 18MP full-color sample image & stage overview camera with anti-glare filter, motorized zoom, and autofocus
- Objectives: 0.7X, 2.5X, 5X, 10X, 20X, 40X, 60X, 100X
- Turret: 9-position motorized turret with visual LED process indicators
- Load Application System: Fully automatic, load cell, closed loop, force feedback
- Control System: IMPRESSIONS™ 4 workflow and tester control system
- Display: 22" full-color touch screen
- Advanced Output: Multi-USB, CSV files, single readings, reports, Q-DAS certified
- Software: Comprehensive features including number of tests, mean, standard deviation, min/max values, CP, CPk, and more.
- Z-Axis: CNC motorized ball bearing slide for fast up/down movement and fine adjustment with a digital scroll wheel
- XY-Stage: Manual or motorized options available
- Workpiece Capacity: 650mm (H) x 395mm (D)
